Aluminium Pharmaceutical Foil

Specification

Alloy: 1235, 8011
Temper: O, H18
Thickness: 0.0065~0.046mm
Tolerance +/-4%
Width: 100~1220mm
Tolerance +/- 1.0 mm
Coil ID: 75, 150

Chemical Compositions

Alloy Fe Si Cu Mn Mg Cr Zn Ni Ti Other Al
Each Total
1235 0.65 0.05 0.05 0.05 - 0.1 - 0.06 0.05 0.15 99.35
8011 0.6~1.0 0.50~0.9 0.1 0.2 0.05 0.05 0.1 - 0.08 0.05 0.15 Remains

Mechanical Properies

Alloy Temper Tensile strength Elongation
8011 H18 >175 MPa >2.5%
1235 H18 >150 MPa >2.5%
8011 O >85 MPa >3.5%

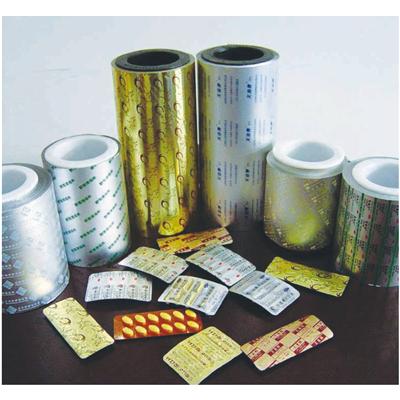

Our aluminum pharmaceutical foils are soft in reel form, one side laminated with film, and other side printing primer coated. These foils can be printed to customers' requirement or un-printed. It is used for strip packing of tablets and capsules. The pharmaceutical foil is laminated to either Low Density Polyethylene or coated with Heat Seal lacquer for sealing. This foil is used in the Pharmaceutical industry for packing tablets and capsules.

Many of aluminium foil’s properties combine to provide user-friendly, safe and versatile packaging formats for pharmaceutical tablets, creams, liquids and powders. Aluminium foil’s excellent barrier properties totally exclude moisture, oxygen and other gases, micro-organisms and light, maintaining degradable products in peak condition over long periods.

Foil comes in a completely sterile condition due to the annealing temperature and final conditioning processes. It is not hazardous to health, and many suppliers offer dedicated ‘clean-room’ printing and laminating or printing and packing facilities to ensure medical standards of sterility.
