Specification

>Alloy:	1235, 8011
Temper:	O
Thickness:	0.006~0.009mm
Width:	100~1220mm
Coil ID:	75mm	150mm
Coil OD:	320~450mm	450~700mm

Chemical Compositions

Alloy	Fe	Si	Cu	Mn	Mg	Cr	Zn	Ni	Ti	Other		Al
										Each	Total
1235	0.65		0.05	0.05	0.05	-	0.1	-	0.06	0.05	0.15	99.35
8011	0.6~1.0	0.50~0.9	0.1	0.2	0.05	0.05	0.1	-	0.08	0.05	0.15	Remains

Tensile Strength Property

Alloy	Temper	Thickness (mm)	Test under room temperature
			Tensile Strength Rm/(N/mm2)	Elongation %(>=)
				A50mm	A100mm
1235	O	0.0060~0.0090	40~100	1.0	－
8111			50~100	1.5	－

Pin Holes

Diameters of pin hold should be less than 0.3mm.

Thickness(mm)	Number of Hole/m2(<=)
0.006	1500
>0.0060～0.0065	1000
>0.0065～0.0070	500
>0.0070～0.0090	200

It retains the characteristic aroma peculiar to each blend and brand, and also gives the packaging a distinctive appearance and quality appeal.

An aluminum foil/paper laminate provides certain characteristics, such as dead fold and emboss ability, which other bundling materials cannot offer.

Tobacco benefits from aluminum foil’s unequalled barrier properties in the same way as other sensitive natural products.

The foil maintains an effective barrier against moisture and protects the tobacco from deterioration, aroma transmission and bacteria by sustaining a micro-climate in the package. With its non-returning dead-fold characteristic, aluminum can be formed to the desired shape with no “spring back” and provides the web strength and dependability essential to high-speed packing lines.

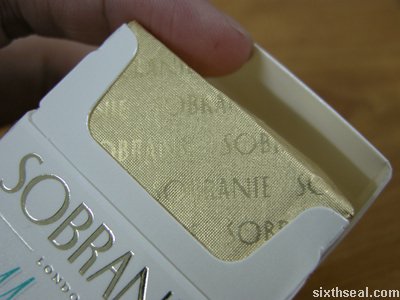

Tobacco is a perishable and often expensive consumer product and requires packaging that delivers it to the consumer in the very best of condition. Aluminium foil has been an integral part of this process since the 1950s. Aluminium foil has become the preferred barrier material, particularly for the inner liner of cigarette packets. This is because it combines the ability to retain the characteristic aroma peculiar to each blend and brand, within a unique quality of ‘feel’ and appearance which is light, robust and easy to re-seal. An aluminium foil/paper laminate also offers mechanical qualities not available in alternative materials.
